Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength

Name: Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 91KG Strength
Brand: HBYIQI
Price: 1 USD

Wholesale Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength from china suppliers

Brand Name : HBYIQI

Model Number : HB-DC05-B

Certification : CE, ISO-9001

Place of Origin : China

MOQ : 1SET

Price : Negotiation

Payment Terms : T/T

Delivery Time : 15 days

Packaging Details : International Standard Package

Control mode : PLC

Ball weight : 9.1Kg

Rod diameter : 15.8mm

Falling height : 0-700mm(Adjustable)

Inner box size : W650mm*D500mm*H1240mm

Outside box size : W820mm*D820mm*H1820mm

Contact Now

Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength Test PLC

Brand: HBYIQI

Equipment Name: Battery Heavy Impact Tester

Appliance: The test sample battery should be placed on a flat surface. A 15.8mm diameter rod is cross-placed in the center of the sample. One 9.1KG or a 10KG weight was dropped onto the sample from a height of 610mm. Each sample cell is subjected to only one shock, and different samples are used for each test. The battery should not catch fire or explode.

Technical Parameter:

Model	HB-DC05-B
Control Mode	PLC touch + Remote Control
Structure	Integrated machine structure, the door adopts explosion-proof lock + explosion-proof chain
Ball weight	9.1kg±0.1kg
Falling height	0-700mm(Adjustable)
Rod diameter	15.8mm
Air outlet	100mm Located above the back of the box
Lifting Mode	Electric lift
Upper and lower impact surface	Steel plate
Chamber Structure
Structure	Intergrated
Inner box size	W650mmD500mmH1240mm
Outside box size	W820mmD820mmH1820mm
Inner box materials	304#stainless steel(thickness1.0mm)
Outside box materials	Cold rolled plate paint (thickness 1.0mm, total thickness of 100m with inner box)
Visible window	300x300mm (Thickness 20mm tempered explosion-proof glass) plus protective steel mesh
Input Requirement
Power supply	AC 220V 50HZ or customization
Power	0.5KW
Optional Item(Extra charge)
Addable item	Add temperature acquisition channel, voltage acquisition system, video surveillance system, smoke alarm system, fire extinguishing system.

Safety protection design

Pressure release vent: Automatic explosion-proof pressure relief device

Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength

Smoke outlet: Get rid of the smoke

Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength

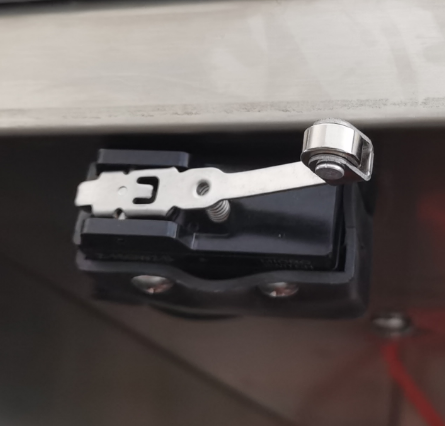

Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety

Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.

Insulation tape in inner box: Prevent battery short circuit

Double-layer explosion-proof tempered glass: Protection is more secure.

Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.

FAQ

Q1: What is your warranty ?

12 months product warranty. Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

Q2: What about the quality ?

Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
